CHASSIS
CHASSIS: Chassis is the one of the basic structure in vehicle. The vehicle without body is also called chassis.
"chassis is the basic or under part of motor vehicle consisting of frames with the wheels and machinery" and chassis is made by steel metal.
Source: SlideShare
For more details ( video)
click the below link👇
Why chassis is made by steel ?
Chassis is the one of the main and basic part of vehicle, it should carry all loads act on the vehicle and also should withstand various vibration, engine torque, twisting load, trust, breaking load etc. so chassis need to manufacture heavy strong metal like steel.
Classification/Types of chassis used in automobile.
1. Full forward
2. Semi forward
3. Bus Chassis
4. Engine at front
5. Engine at Centre
6. Engine at rear
Source: google
1. Full Forward Chassis: In the full forward chassis the whole engine is fitted in fully forward i.e. from the driver cabin the engine is fitted fully forward(full front).
Example: almost all cars.
Source: google
2. Semi Forward Chassis: In the semi forward chassis the engine is fitted in partially forward from driver cabin and partially in driver cabin. example: Tata ace etc.
Source: google
3. Bus Chassis: This is the one of the different type of chassis.in this type the whole engine is fitted in the driver cabin mean the engine and the driver cabin both are in same place i.e. very close to driver.
Source: google
In this bus chassis further divide in to following types based of no of drive wheels which have,
1. 4x2 drive chassis-The vehicle have 4 wheels and out of 2 wheels are drive wheels.
2. 4x4 drive chassis-The vehicle have 4 wheels and all the wheels are drive wheels.
3. 6x2 drive chassis-The vehicle have 6 wheels and out of 2 wheels are drive wheels.
4. 6x4 drive chassis-The vehicle have 6 wheels and out of 4 wheels are drive wheels.
4. Engine at front: In this type of chassis the engine is fitted at front of the vehicle.
example: all cars
Source: Maruti Suzuki
5. Engine at Centre: In this type of chassis the engine is fitted at center of the vehicle. Example: Maruti Omni car.
Source: google
Source: google
For more details ( video)
click the below link👇
click here to play 👉 https://youtu.be/hBKZpPXejZY
Classification of chassis frames:
Based on the basic structure of chassis frame is classified as follows
1. Conventional chassis frame
2. Integral chassis frame

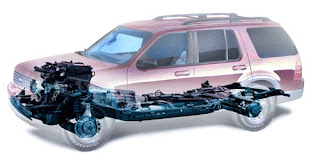

Conventional chassis frame: conventional chassis frame is the one of the oldest and most popular type of chassis used in where the body is different and need to more strength chassis.
example :Bus chassis-the chassis and auto body or superstructure both is different.
Source: Ford
Integral chassis frame: In integral chassis frame the vehicle is manufactured with unique, the auto body and chassis is not manufactured separately, In this chassis body and chassis both same.
example: cars
Source: google

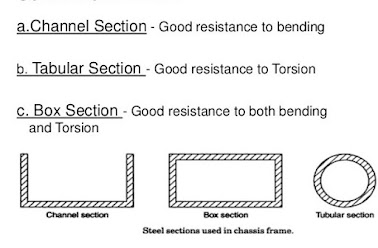

Classification of chassis frame sections
The sections is the basic components used to making the frames of chassis and they classified as following
1. Channel section
2. Box section
3. Tubular section
Channel section: Channel section is used for Long members.
Box section: Channel section is used for Short members.
Tubular section: Channel section is used for two wheelers, three wheelers, matadors etc.
Loads on chassis:
As we think a vehicle the chassis can carry so many loads, force, trust etc. while static and dynamic condition, the main loads act on the chassis are,
1. Weights of passengers
2. Weights of goods
3. Braking loads
4. Centrifugal force acting while turning.
5. Weight of the components.
6. Impact load
7. Inertia load
8. Static load
Questions and answers
I. MCQ
1. 4 X 2 drive chassis means
a. consists of 2 wheels out of which 4 wheels are the
driving wheels.
b. consists of 4 wheels out of which 2 wheels are the
driving wheels.
c. consists of 2 wheels out of which 2 wheels are the
driving wheels.
d. consists of 4 wheels out of which 4 wheels are the
driving wheels,
2. 4 X 4 drive chassis
a. consists of 4 wheels and all of them are the driving
wheels.
b. consists of 4 wheels out of which 2 wheels are the driving wheels.
c. consists of 2 wheels out of which 2 wheels are the driving wheels.
d. consists of 2 wheels out of which 4 wheels are the driving wheels.
3. 6X 2 drive chassis
a. consists of 6 wheels out of which 4 wheels are the driving wheels.
b. consists of 2 wheels out of which 6 wheels are the driving wheels.
c. consists of 6 wheels out of which 2 wheels are the driving wheels.
d. consists of 4 wheels out of which 2 wheels are the driving wheels.
4. 6X 4 drive chassis
a. consists of 6 wheels out of which 2 wheels are the driving wheels.
c. consists of 4 wheels out of which 6 wheels are the driving wheels.
d. consists of 2 wheels out of which 4 wheels are the driving wheels,
d. consists of 6 wheels out of which 4 wheels are the
driving wheels.
5. Channel section is made of ________________
a. Wood b. Iron c. Steel d. Aluminum
6. A chassis is used for___________
a. carrying the bolt
b. opening the load c. fixing the auto body d. folding the nut
3. Chassis is made of ___________
a. wood
b. oil c. metal d. plastic
II. fill in the blanks
- Chassis is used for fixing the auto body.
- Channel section is used long members.
- Box section is used for Short members.
- Tubular section is used in three –wheelers, scooters and matadors models.
- In bus chassis, the whole engine is fitted in the Driver cabin.
- Chassis is the under part of a motor vehicle, consisting of the frame with the wheels and machinery.
for more details click the below link👇
III. Answer the following
1. What is chassis? or Define chassis? or What you mean by chassis?
Ans:- chassis is the under part of a motor vehicle, consisting of the frame with the wheels and machinery. chassis is made by steel.
Ans:- chassis is the under part of a motor vehicle, consisting of the frame with the wheels and machinery. chassis is made by steel.
2.Classify the chassis? or Write the types of chassis? or Note down the types of chassis used in vehicle? Or List the types of chassis commonly used in vehicle?
Ans:-1. Full forward
2. Semi-forward.
3. Bus chassis.
4. Engine in front.
5. Engine at center.
6. Engine at Rear.
3.Classify the chassis frame? or Write the types of chassis frame? or Note down the types of chassis frame used in vehicle? Or List the types of chassis frame commonly used in vehicle?
Ans:-1. Conventional Chassis frame.
2. Integral Chassis frame.
4. Advantage of integral frame chassis over conventional chassis frame.
Ans:- 1. Cost is less.
2. Components are less.
3. Cost is less,
4. The Centre of gravity of the vehicle is lowered,
3.Classify the Section used in chassis? or Write the types of Section used in chassis? or Note down the types of Section used in chassis frames in a vehicle? Or List the types of section commonly used in chassis frame in vehicle?
Ans:-1. Channel Section-used in Long members
2. Box Section-used in Short members
3. Tubular Section- used in three –wheelers, scooters and matadors, pick-ups
frames.
( write with figure)
4. Loads on the Chassis frame
Ans:-1. Weight of the vehicle
2. Weight of the passengers.
3. Vertical loads
4. Engine torque.
5. Inertia loads
6. Sudden impact loads during a collision.
7. Loads for longer periods.
8. Braking loads
9. Centrifugal force acting while turning.
10. Static load
5. Draw a neat diagram of chassis and label the parts?
Ans:-
Common questions asked in examination- comments the answers
1. 1) Channel is made of
a. Iron b. Steel c. Wood d. Aluminum
2. 6x4 drive chassis vehicle means
6x4
a. Consists of 6 wheels out of which 6 wheels are the driving wheels.
b. Consists of 4 wheels out of which 4 wheels are driving wheels.
c. Consists of 24 wheels out of which 6 wheels are driving wheels.
d. Consists of 6 wheels out of which 4 wheels are driving wheels.
3. A chassis is made of
a. wood b. oil c. metal d. plastic
4. 4 X 2 drive chassis vehicle means
a. consists of 4 wheels out of which 2 wheels are the driving wheels
b. consists of 4 wheels out of which 4 wheels are driving wheels
c. consists of 4 wheels out of which one wheel is a driving wheel
d. consists of 8 wheels out of which 2 wheels are driving wheels
5. A chassis is used for
a. carrying the bolt b. opening the load
c. fixing the auto body d. folding the nut
6. 6 X 2 drive chassis vehicle means
a. consists of 6 wheels out of which 6 wheels are the driving wheels
b. consists of 6 wheels out of which 2 wheels are the driving wheels
c. consists of 12 wheels out of which 6 wheels are driving wheels
d. consists of 2 wheels out of which 2 wheels are driving wheels
II. Answer the following
1. List the types of loads that act on the chassis frame
2. Name the two types of chassis frames.
